Construction telehandlers

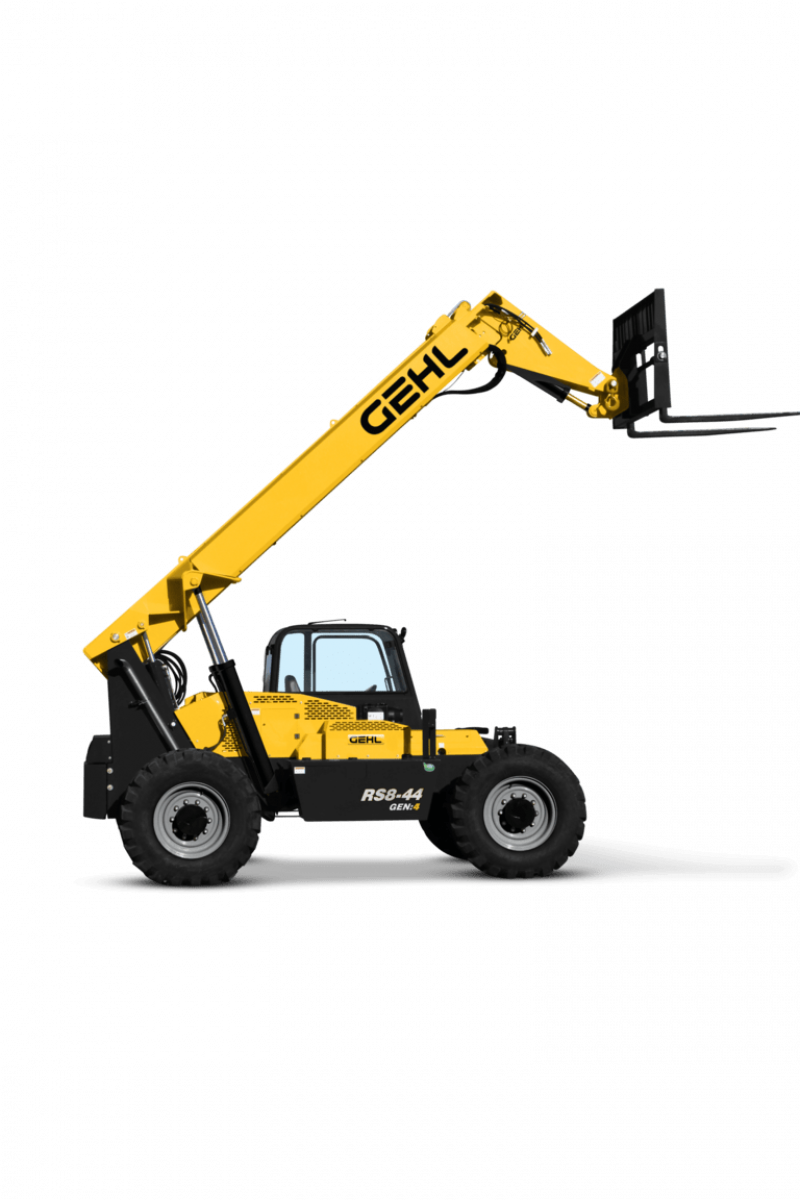

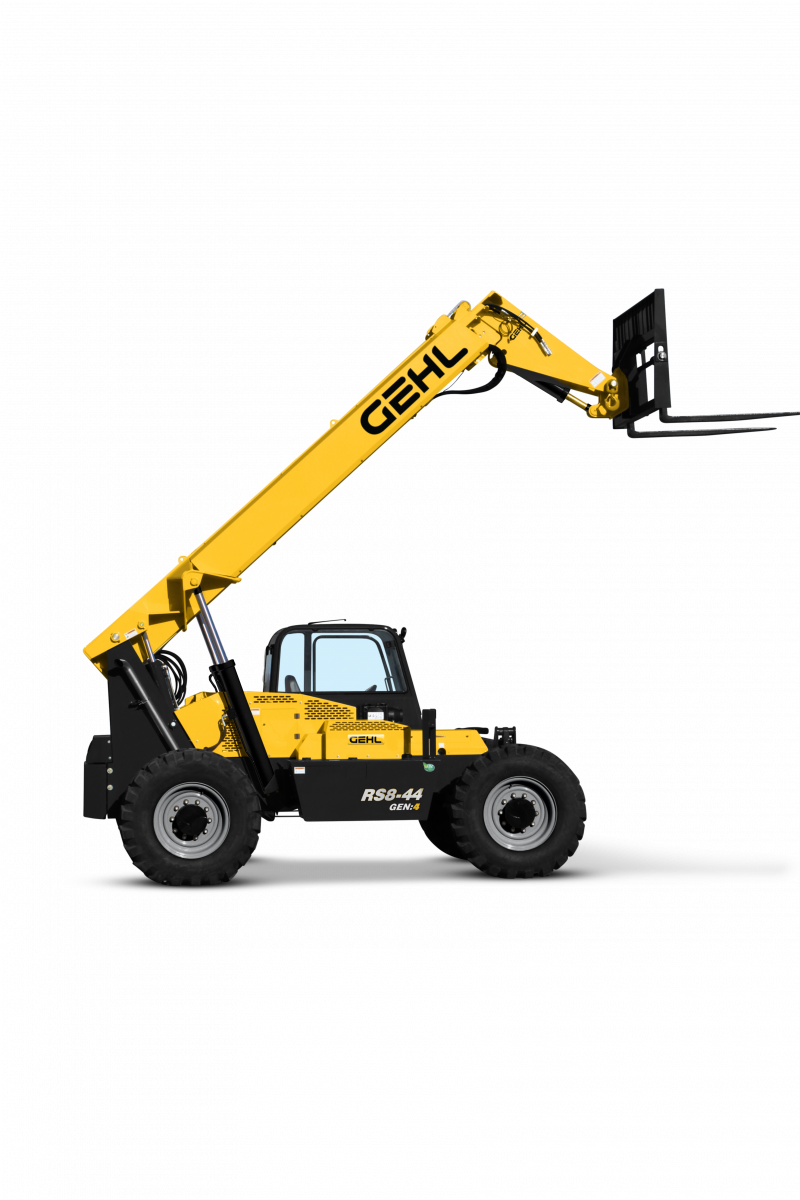

RS8-44 GEN:4

Construction telehandlers

If you're looking for a machine that will power through your work day with speed and efficiency, look no further than the RS8-44. This Telescopic Handler not only has the power you need for your job, but unsurpassable serviceability capabilities. With several access points and large access doors, service for your machine comes with ease. The hydraulic system and control are unbeatable. Get in your RS8-44 GEN:3 today!

See more See less
8000 lb
44 ft
30 ft 5 in
120 Hp
Learn more about the GEHL warranty

Technical features

Capacities

Max. capacity

8000 lb

Max. lifting height

44 ft

Max. outreach

30 ft 5 in

Weight and dimensions

Length to face of forks

19 ft 1 in

Overall width

8 ft 2 in

Overall height

7 ft 10 in

Wheelbase

10 ft

Ground clearance

16 in

Tilt-up angle

12 °

Tilt-down angle

112 °

External turning radius

13 ft 8 in

Unladen weight (with forks)

23500 lb

Overall weight

23501 lb

Standard tires

13 x 24

Frame leveling longitudinal +/-

10 °

Frame leveling corrector

10 °

Engine

Engine brand

Deutz

Engine norm

Tier 4 final

Engine model

TCD 3.6 L4

I.C. Engine power rating - Power

120 Hp / 89 kW

Max. torque / Engine rotation

354 ft/lbs @ 1600 rpm

Transmission

Transmission type

Torque converter with powershift gearbox

Number of gears (forward / reverse)

3 / 3

Travel speed (laden)

20 mph

Max. travel speed

20 mph

Parking brake

Hydraulic spring release SAHR

Service brake

Wet disc brakes

Axle Manufacturer

Dana

Hydraulics

Hydraulic pump type

Gear pump

Hydraulic flow / Pressure

41 US gpm-3002 PSI

Tank capacities

Hydraulic oil

31 US gal

Diesel Exhaust fluid (AdBlue® type)

5 US gal

Fuel tank

47 US gal

Miscellaneous

Steering wheels (front / rear)

2 / 2

Drive wheels (front / rear)

2 / 2

Safety cab homologation

ROPS/FOPS

Controls

Single Joystick FNR
