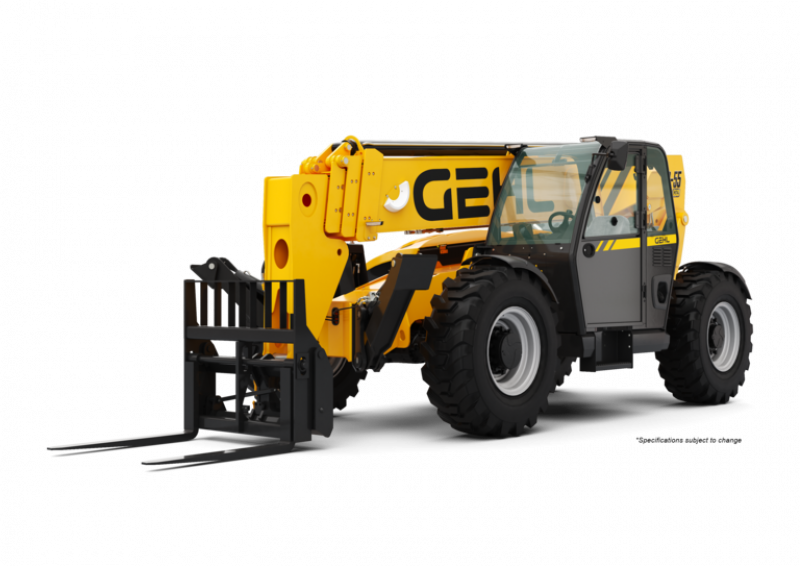

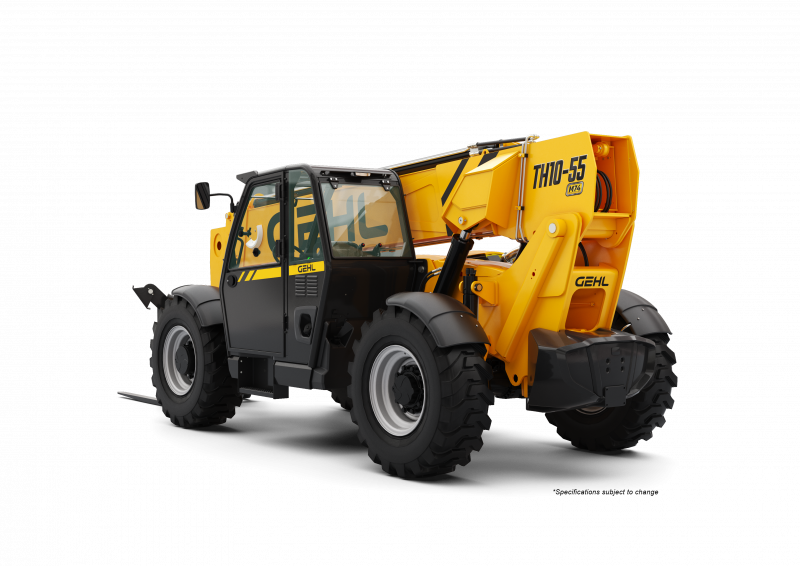

TH10-55 M74 - NEW

Construction telehandlers

Working on a low-speed job site where stability, reach, and power are top priorities for your machinery? Then the TH10-55 M74 is the machine you're looking for. It has the power that demanding jobs require but without the added stress and expense of having to maintain DEF fluid levels. Offering 10,000 lbs. of lifting capacity with a long boom, this Telescopic Handler is perfect for staging bricks and bulky loads of lumber on construction sites. And it can move at all boom levels to facilitate aligning of material positioning thanks to its upgraded stabilization system. Still interested in avoiding DEF fluid costs without sacrificing the strength you depend on? Then it's time to let the TH10-55 M74 do what it was built for; help you finish tough jobs in rough environments with less effort.

See more See less
10000 lb
55 ft 7 in
42 ft 3 in
74 Hp
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Max. capacity

10000 lb

Max. lifting height

55 ft 7 in

Max. outreach

42 ft 3 in

Weight and dimensions

Overall length to carriage

21 ft

Overall length (with forks)

25 ft

Overall width

8 ft 4 in

Overall height

8 ft 6 in

Wheelbase

11 ft 6 in

Ground clearance

1 ft 7 in

Overall cab width

3 ft 1 in

Tilt-up angle

34 °

Tilt-down angle

96 °

External turning radius

12 ft 9 in

Overall weight

30300 lb

Tires type

Pneumatic

Forks length / width / section

48 in x 5 in x 2 in

Frame leveling longitudinal +/-

10 °

Performances

Lifting

16 s

Lowering

11 s

Extension

18 s

Retraction

16 s

Crowd

4 s

Dump

6 s

Engine

Engine brand

Deutz

Engine norm

Tier 4 final

Engine model

TCD 3.6 L4

Number of cylinders / Capacity of cylinders

4 - 220 in³

I.C. Engine power rating - Power

74 Hp / 55 kW

Max. torque / Engine rotation

288 ft/lbs @ 2300 rpm

Transmission

Transmission type

Powershift

Number of gears (forward / reverse)

5 / 3

Max. travel speed

19 mph

Parking brake

Hydraulic spring release SAHR

Service brake

Wet disc brakes

Hydraulics

Hydraulic pump type

Axial piston

Hydraulic flow / Pressure

40 US gpm-4000 PSI

Tank capacities

Engine oil

2 US gal

Hydraulic oil

42 US gal

Fuel tank

38 US gal

Noise and vibration

Noise at driving position (LpA)

80 dB

Miscellaneous

Steering wheels (front / rear)

2 / 2

Drive wheels (front / rear)

2 / 2

Controls

Joystick
