Construction telehandlers

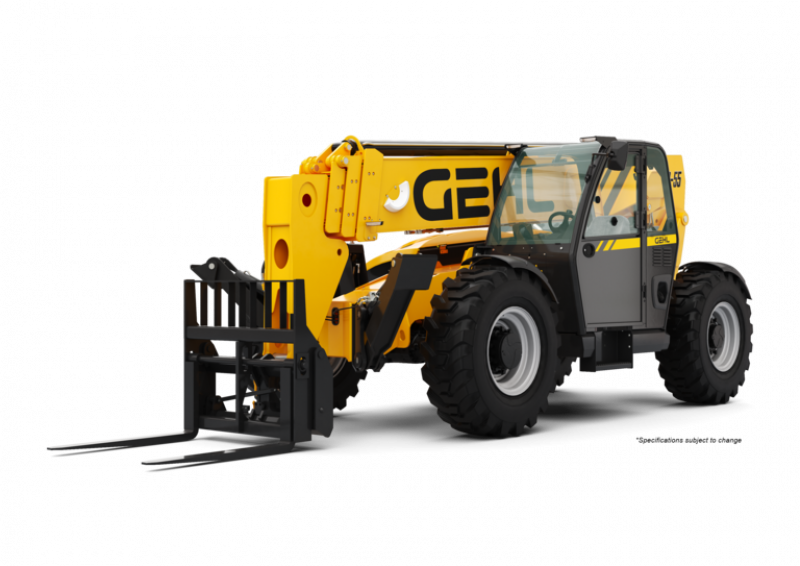

TH10-55 - NEW

Construction telehandlers

When it comes to material handling at construction sites for apartments or condominiums, you need stability, reach, and power—and the TH10-55 has it all. Offering 10,000 lbs. of lifting capacity with a long boom, this Telescopic Handler can stage pallets of bricks and bulky loads of lumber multiple stories up with its 55 feet of reach. You'll save time on busy workdays with its upgraded stabilization system, which allows for movement at all boom levels to facilitate aligning of material positioning. Plus, its automatic transmission and parking brake make for a seamless operator experience, even in rough terrain and difficult conditions. Job-tested and built for hard work, it's time to take a load off your shoulders and let the TH10-55 do the heavy lifting.

See more See less
10000 lb
55 ft 7 in
42 ft 3 in
127 Hp
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Max. capacity

10000 lb

Max. lifting height

55 ft 7 in

Max. outreach

42 ft 3 in

Weight and dimensions

Overall length to carriage

21 ft

Overall length (with forks)

25 ft

Overall width

8 ft 4 in

Overall height

8 ft 6 in

Wheelbase

11 ft 6 in

Ground clearance

1 ft 7 in

Overall cab width

3 ft 1 in

Tilt-up angle

34 °

Tilt-down angle

96 °

External turning radius

12 ft 9 in

Overall weight

30300 lb

Tires type

Pneumatic

Forks length / width / section

48 in x 5 in x 2 in

Frame leveling longitudinal +/-

10 °

Performances

Lifting

16 s

Lowering

11 s

Extension

18 s

Retraction

16 s

Crowd

4 s

Dump

6 s

Engine

Engine brand

Deutz

Engine norm

Tier 4 final

Engine model

TCD 3.6 L4

Number of cylinders / Capacity of cylinders

4 - 220 in³

I.C. Engine power rating - Power

127 Hp / 95 kW

Max. torque / Engine rotation

369 ft/lbs @ 2300 rpm

Transmission

Transmission type

Powershift

Number of gears (forward / reverse)

5 / 3

Max. travel speed

20 mph

Parking brake

Hydraulic spring release SAHR

Service brake

Wet disc brakes

Hydraulics

Hydraulic pump type

Axial piston

Hydraulic flow / Pressure

40 US gpm-4000 PSI

Tank capacities

Engine oil

2 US gal

Hydraulic oil

42 US gal

Diesel Exhaust fluid (AdBlue® type)

4 US gal

Fuel tank

38 US gal

Noise and vibration

Noise at driving position (LpA)

80 dB

Miscellaneous

Steering wheels (front / rear)

2 / 2

Drive wheels (front / rear)

2 / 2

Controls

Joystick
