Construction telehandlers

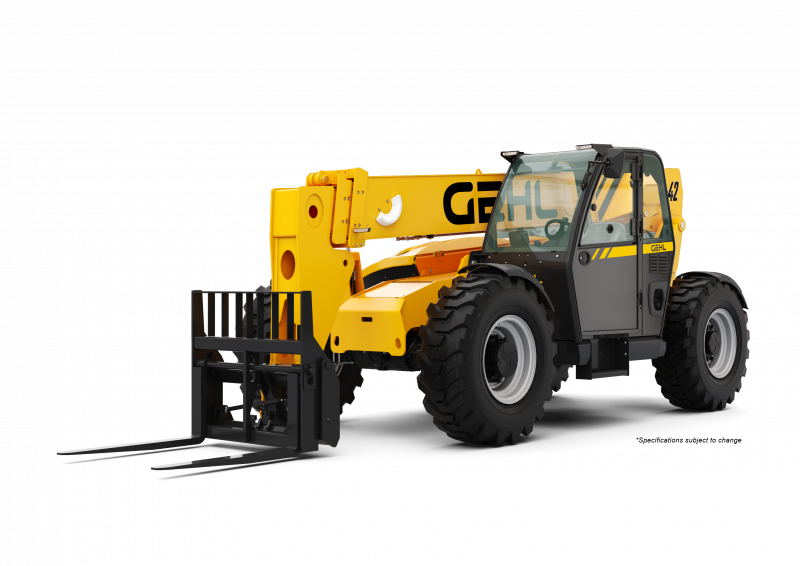

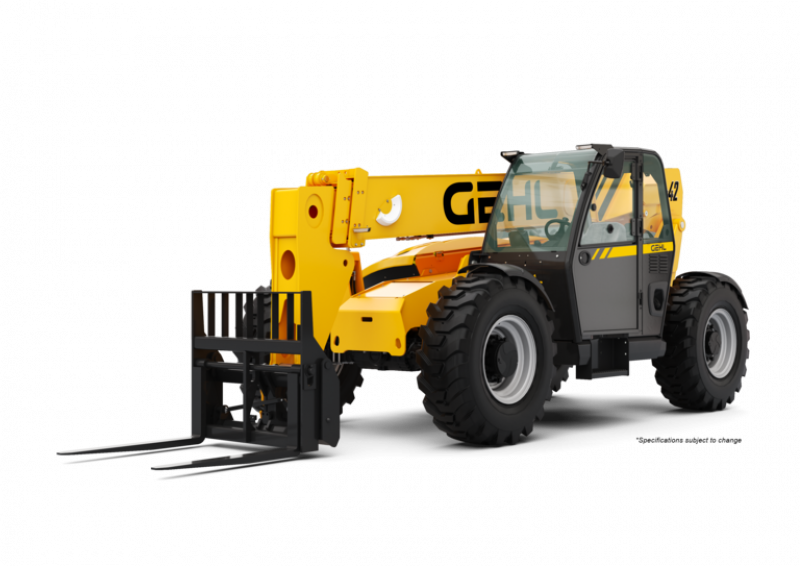

TH12-42 - NEW

Construction telehandlers

For operators in industrial settings where lifting capacity is more important than vertical reach, the TH12-42 Telescopic Handler is exactly what you need and just what you're looking for. Designed for lifting heavy loads, this machine features both a longer wheelbase and a boom made with high-strength steel for improved stabilization. It maneuvers with ease thanks to its intuitive operator interface and simple joystick controls, even in demanding or unpredictable environments. Plus, its wide cab and improved operator station with adjustable steering column make for a more comfortable experience. A durable and capable machine you can depend on, the TH12-42 has the muscle where it counts.

See more See less
12000 lb
42 ft 6 in
28 ft 6 in
127 Hp
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Max. capacity

12000 lb

Max. lifting height

42 ft 6 in

Max. outreach

28 ft 6 in

Weight and dimensions

Overall length to carriage

20 ft 8 in

Overall length (with forks)

24 ft 8 in

Overall width

8 ft 4 in

Overall height

8 ft 1 in

Wheelbase

11 ft 6 in

Ground clearance

1 ft 7 in

Overall cab width

3 ft 1 in

Tilt-up angle

34 °

Tilt-down angle

96 °

External turning radius

12 ft 9 in

Overall weight

26751 lb

Tires type

Pneumatic

Forks length / width / section

48 in x 6 in x 2 in

Frame leveling longitudinal +/-

10 °

Performances

Lifting

16 s

Lowering

11 s

Extension

17 s

Retraction

12 s

Crowd

4 s

Dump

6 s

Engine

Engine brand

Deutz

Engine norm

Tier 4 final

Engine model

TCD 3.6 L4

Number of cylinders / Capacity of cylinders

4 - 220 in³

I.C. Engine power rating - Power

127 Hp / 95 kW

Max. torque / Engine rotation

369 ft/lbs @ 2300 rpm

Transmission

Transmission type

Powershift

Number of gears (forward / reverse)

5 / 3

Max. travel speed

22 mph

Parking brake

Hydraulic spring release SAHR

Service brake

Wet disc brakes

Hydraulics

Hydraulic pump type

Axial piston

Hydraulic flow / Pressure

40 US gpm-4000 PSI

Tank capacities

Engine oil

2 US gal

Hydraulic oil

38 US gal

Diesel Exhaust fluid (AdBlue® type)

4 US gal

Fuel tank

38 US gal

Noise and vibration

Noise at driving position (LpA)

80 dB

Miscellaneous

Steering wheels (front / rear)

2 / 2

Drive wheels (front / rear)

2 / 2
