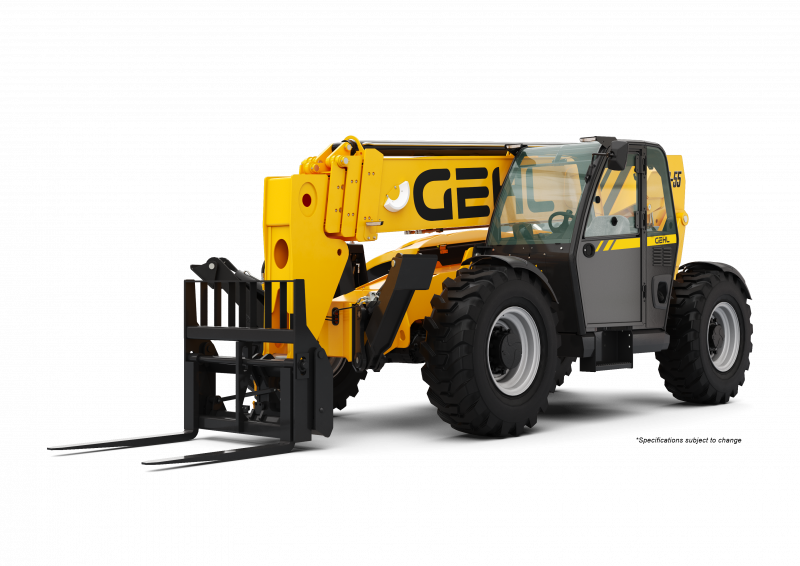

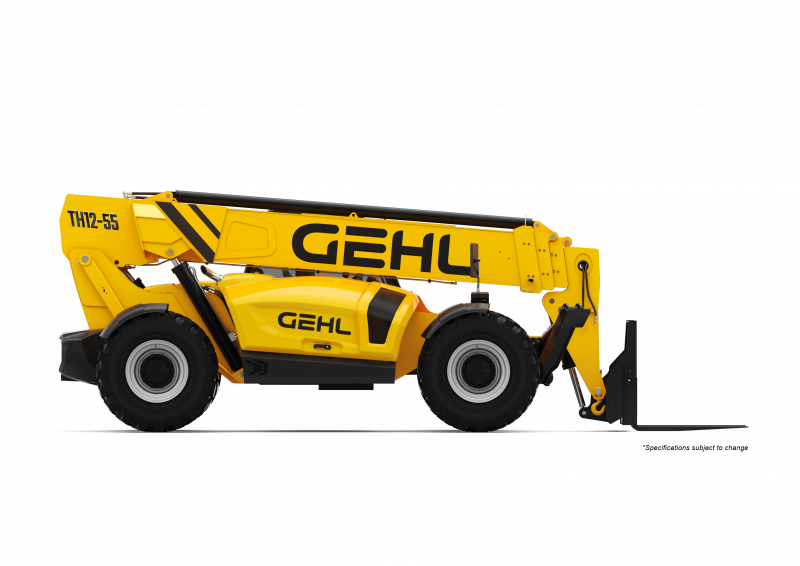

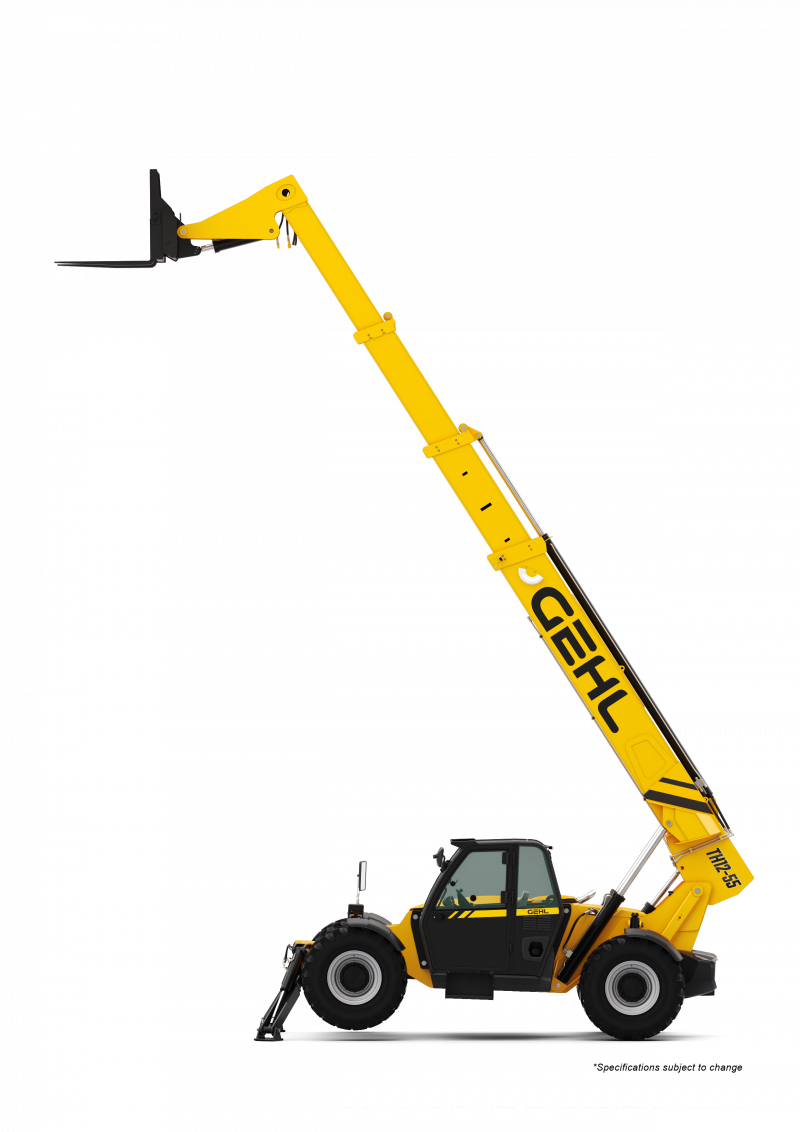

TH12-55 - NEW

Construction telehandlers

Built for the toughest, most demanding projects, the TH12-55 is the biggest and toughest Telescopic Handler we offer with 55 feet of reach and 12,000 lbs. of lifting capacity. It's sturdy. It's durable. It's packed with unmatched strength and reach. With stabilizers standard on this beast, the TH12-55 is designed to carry even heavier loads at a forward reach, with added security and peace of mind. Plus, with a wider and quieter cab, simple-to-use joystick controls, and EasyStep—a more accessible step to get in and out with—it delivers all-day comfort and allows you to keep working from morning 'til night. We know how difficult it is to deal with challenging terrain and back-breaking conditions on construction sites, lumber yards, and wind farms; it's time you found a machine that can do it without breaking a sweat.

See more See less
12000 lb
55 ft 7 in
42 ft 3 in
127 Hp
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Max. capacity

12000 lb

Max. lifting height

55 ft 7 in

Max. outreach

42 ft 3 in

Weight and dimensions

Overall length to carriage

21 ft

Overall length (with forks)

25 ft

Overall width

8 ft 4 in

Overall height

8 ft 6 in

Wheelbase

11 ft 6 in

Ground clearance

1 ft 7 in

Overall cab width

3 ft 1 in

Tilt-up angle

34 °

Tilt-down angle

96 °

External turning radius

12 ft 9 in

Overall weight

32399 lb

Tires type

Pneumatic

Forks length / width / section

48 in x 6 in x 2 in

Frame leveling longitudinal +/-

10 °

Performances

Lifting

16 s

Lowering

11 s

Extension

18 s

Retraction

16 s

Crowd

4 s

Dump

6 s

Engine

Engine brand

Deutz

Engine norm

Tier 4 final

Engine model

TCD 3.6 L4

Number of cylinders / Capacity of cylinders

4 - 220 in³

I.C. Engine power rating - Power

127 Hp / 95 kW

Max. torque / Engine rotation

369 ft/lbs @ 2300 rpm

Transmission

Transmission type

Powershift

Number of gears (forward / reverse)

5 / 3

Max. travel speed

20 mph

Parking brake

Hydraulic spring release SAHR

Service brake

Wet disc brakes

Hydraulics

Hydraulic pump type

Axial piston

Hydraulic flow / Pressure

40 US gpm-4000 PSI

Tank capacities

Engine oil

2 US gal

Hydraulic oil

42 US gal

Diesel Exhaust fluid (AdBlue® type)

4 US gal

Fuel tank

38 US gal

Noise and vibration

Noise at driving position (LpA)

80 dB

Miscellaneous

Steering wheels (front / rear)

2 / 2

Drive wheels (front / rear)

2 / 2

Controls

Joystick
